BOX LINE BLT 200

BOX LINE TAPER

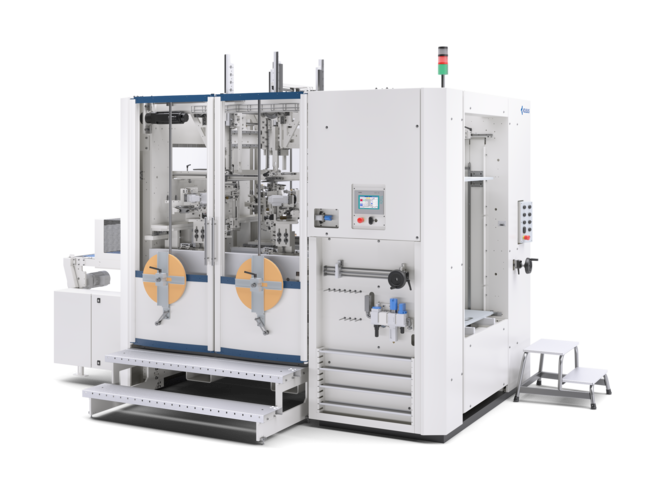

Sealing tape machine for automated fold-up and taping of punched or grooved box blanks up to 40 products/min.



Benefits

  • Fold-up station
  • 4 hot sealing tape applicators
  • Delivery via conveyor belt
  • Automated format set-up
  • Coupled in-line with BLW 200 Wrapper

Technical data

Technical data

Size range cardboard blanks
Height cardboard H:    min. 140 mm / max. 525 mm
Width cardboard W:     min. 140 mm / max. 735 mm
Thickness cardboard:    min. 1 mm / max. 3 mm


Size range Box
Length box L:    min. 56 mm / max. 570 mm
Width box W:    min. 56 mm / max. 360 mm
Height box H:    min. 20 mm / max. 170 mm
Thickness cardboard:    min. 1.0 mm / max. 3.0 mm
The interior dimensions of the box depend on the cardboard thickness


Mechanical speed
up to 40 cycles/min
for box height > 135 mm, max. 25 cycles/min
Net production is subject to sizes, materials etc.
