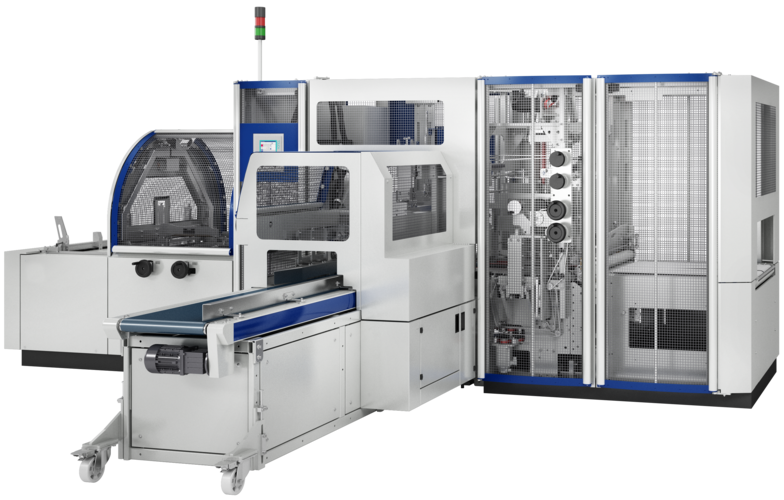

BOX LINE BLA 500 + BP 500

BOX LINE Assembler BLA 500 for production of boxes

Automated placing of finished inside boxes, up to 40 products/min

Benefits

  • Precise placing with sideward grippers
  • Pressing station with punch
  • Industrial production instead of manual work
  • Station for upright glued sides and press to box side



Features

The placing module positions the boxes on the glued box cases exactly. After that, the jointed components are delivered via a conveyer belt with a length of 1,000 mm. It is possible to use the blank placing modules CP 500 alternatively. The placing modules are exchangeable without tools.





Technical data

Technical data

Box sizes (width x height x length)

min. 62 x 10 x 130 mm

max. 310 x 210 x 400 mm

Board thickness

min. 1 mm

max. 4 mm
