PK 170 Board cutter

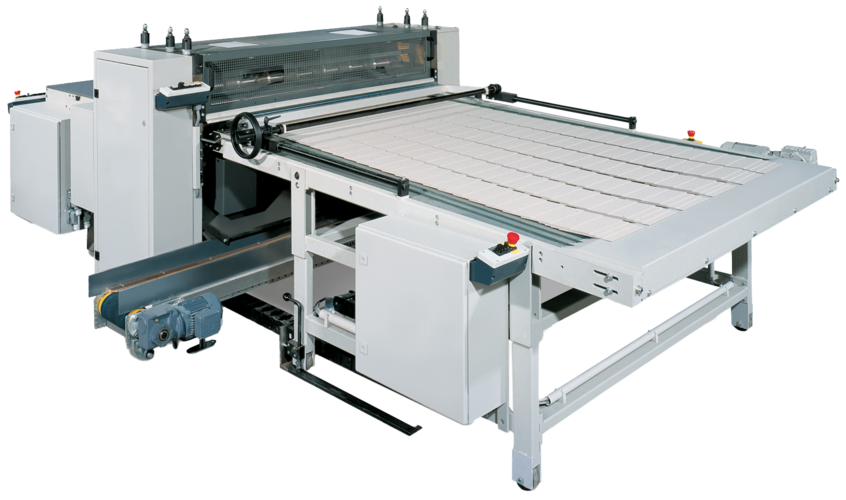

Rotary Board Cutter PK 170

For cutting finished sections out of cardboard sheets or similar materials in two work processes with a linear cutting speed of 120 m/min, strip feed 220 cycles/min.

Benefits

High-precision, accurately angled cutting of case boards at top speeds using the rotary board cutter for lengthwise and crosswise cuts.

Features

Easy operation with steplessly adjustable feed and cutting speed. The strip magazine for cutting blanks is quick and easy to attach. Slippage-free board feed thanks to pull-in rolls made of an effective rubber/steel combination.

The video shows the PK 170 with groove milling station

PK 170 with tool traverse for two continuously adjustable slot milling stations
with a holder of 1 or 2 slot cutters (depending on the slot width) and dust extraction box

PK 170 with inline stacking conveyor CS 171

The machine is used for automatic stacking of finished blanks from cardboard panels on pallets.

  • Pre-programmable fully automatic positioning of the format blanks on the pallet
  • Monitoring of the shingle stream position
  • Different pallet sizes possible
  • Machine operation possible with only one person

Technical data PK 170

Working width

Original board format

min. 600 mm

max. 1,400 mm


Cutting width

min. 85 mm

max. 1,380 mm


Finished size (width x length)

min. 85 x 150 mm

max. 1,380 x 480 mm (with infeed device)


Board thickness

1 – 4 mm


Mechanical speed

Linear cutting speed

infinitely variable 30 – 120 m/min

Net production is subject to sizes, materials etc.
